Aquastop

Prevents foreign water from entering the sewer network too quickly and uncontrollably and relieves the load on the sewage treatment plant — also available with integrated ventilation.

Product description

When heavy rainfall overwhelms the sewer network and the connected infrastructure of the sewage treatment plants, the Aquastop can remedy the situation simply and cost-effectively.

During heavy rain, more than eight to ten times the regular amount of water must be absorbed by the sewage system at times. Wastewater treatment plants and sewer systems are often unable to cope with this challenge, which results in high costs.

The use of Aquastop reliably prevents too rapid and uncontrolled entry into the sewer network and — as required — ensures ventilation of the sewer. As a result, treatment costs are significantly reduced. In separation systems, an external water seal prevents rainwater from flowing into the waste water channel.

The area of application includes all common mixing and separation systems as well as all underground plants into which little or no water may penetrate.

Product benefits

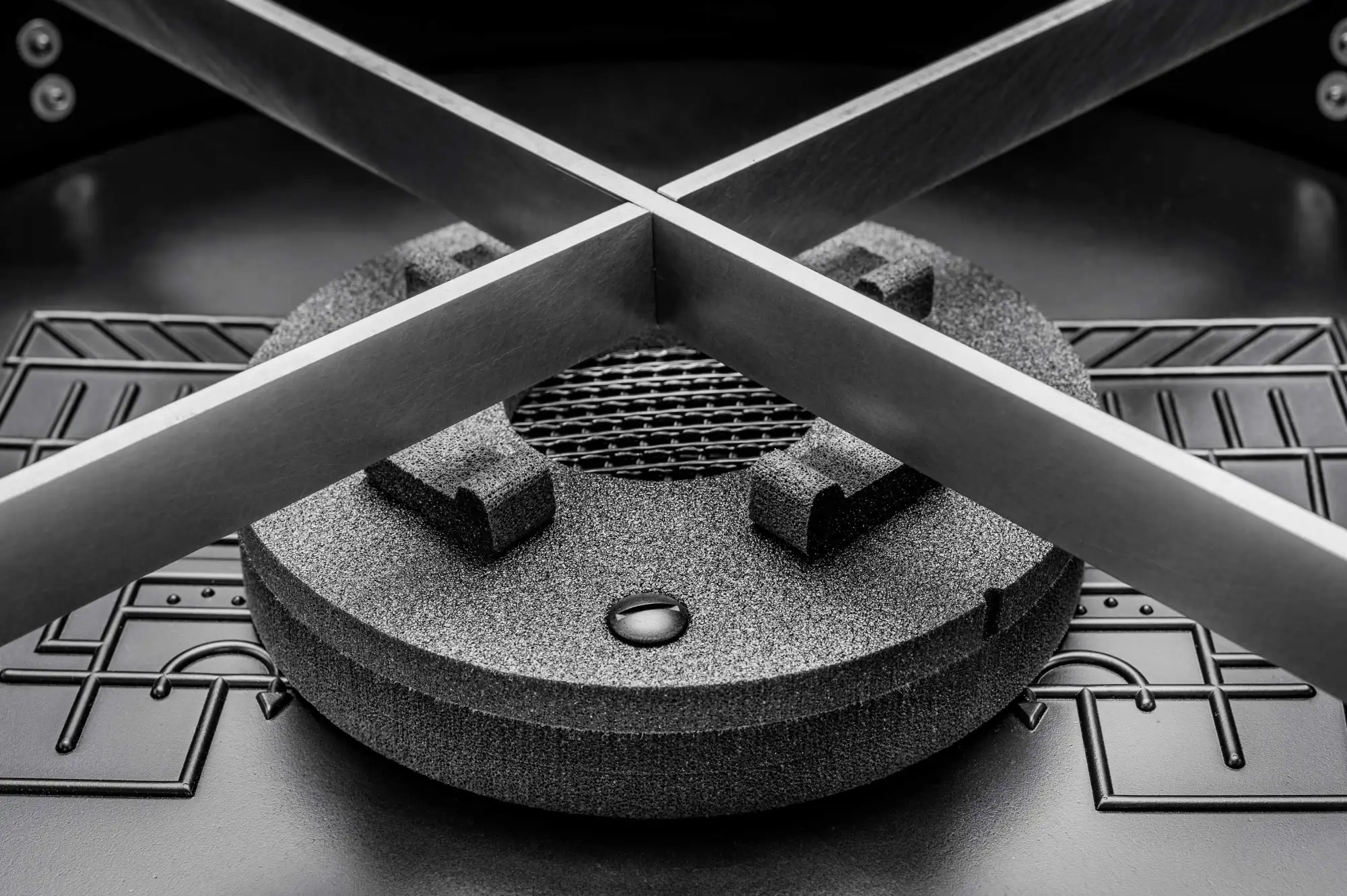

Sealing insert
Corpus
Float
  • Low investment costs
  • Effective external water seal
  • Quick installation, easy handling
  • Reducing treatment costs
  • Light, compact and robust construction
  • Ventilation is maintained
  • High quality standards and quality assurance

Product variants

Product image

Product name

Product number

Dimensions/diameter

Height

installation depth

For shaft frames

Prduktgewicht

How it works

Hakenlänge

Number of filter mats

Filter medium

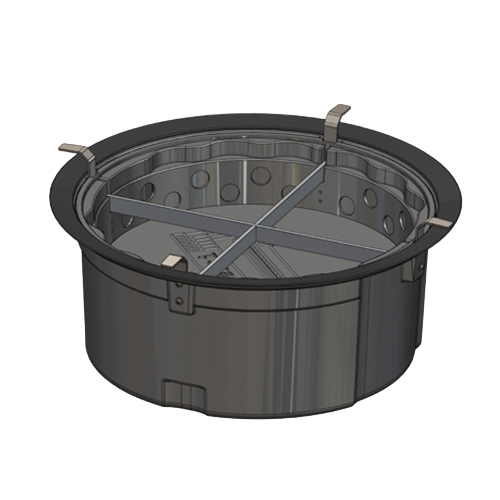

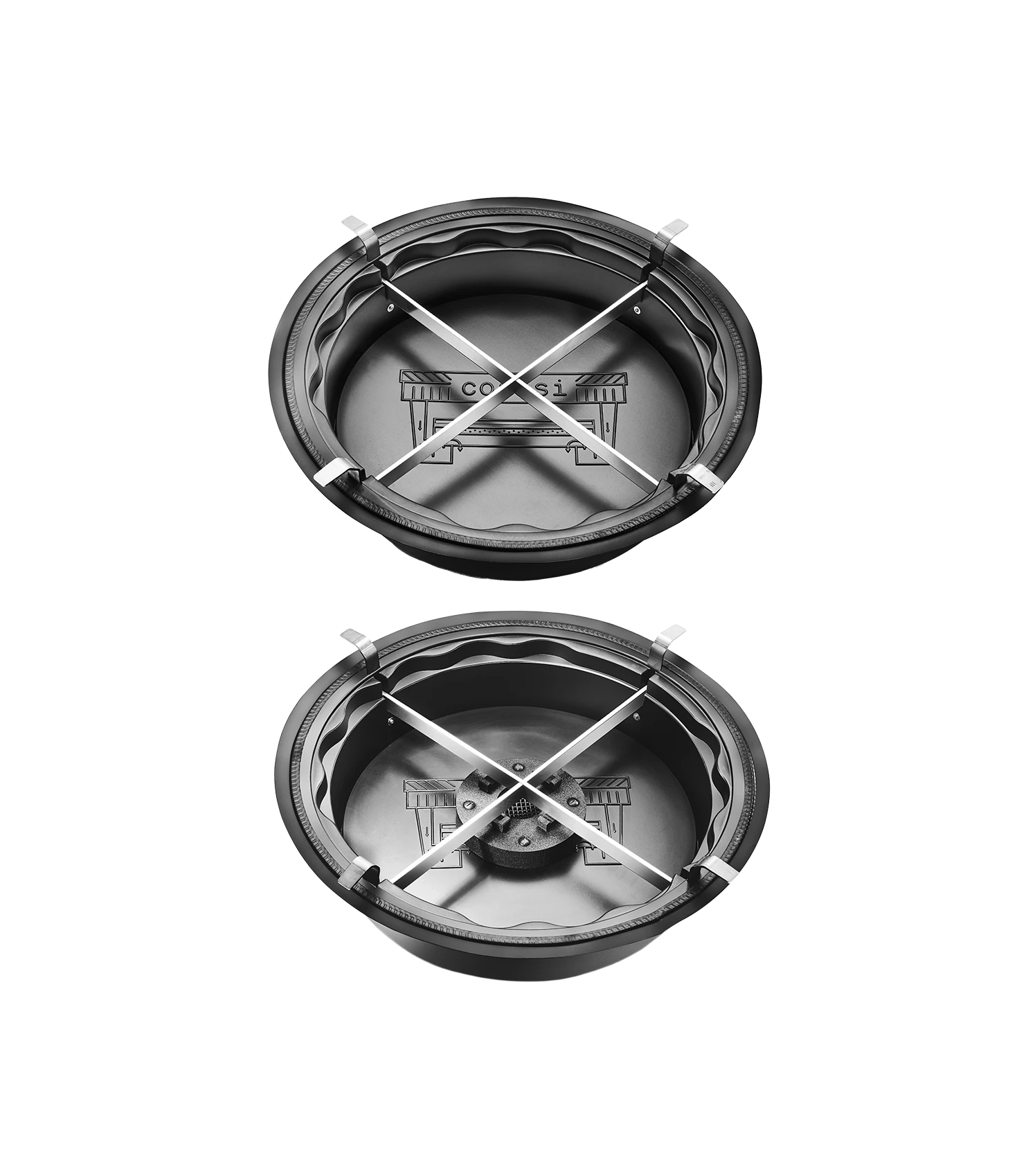

Aquastop with ventilation

UT30067

approx. 630 mm diameter

259mm

DN625, DIN 19584, D400

Aquastop without ventilation

UT30070

approx. 630 mm diameter

167 mm

DN625, DIN 19584, D400

UV-resistant

antistatic

resistant to acids and bases

temperature-resistant

Food-safe

Downloads

Are you looking for detailed documentation about our products? Here you can easily download brochures and technical information.
