Insert filter with clamping ring

Easily retrofit odour filters – securely clamped and quickly removable for maintenance.

Product description

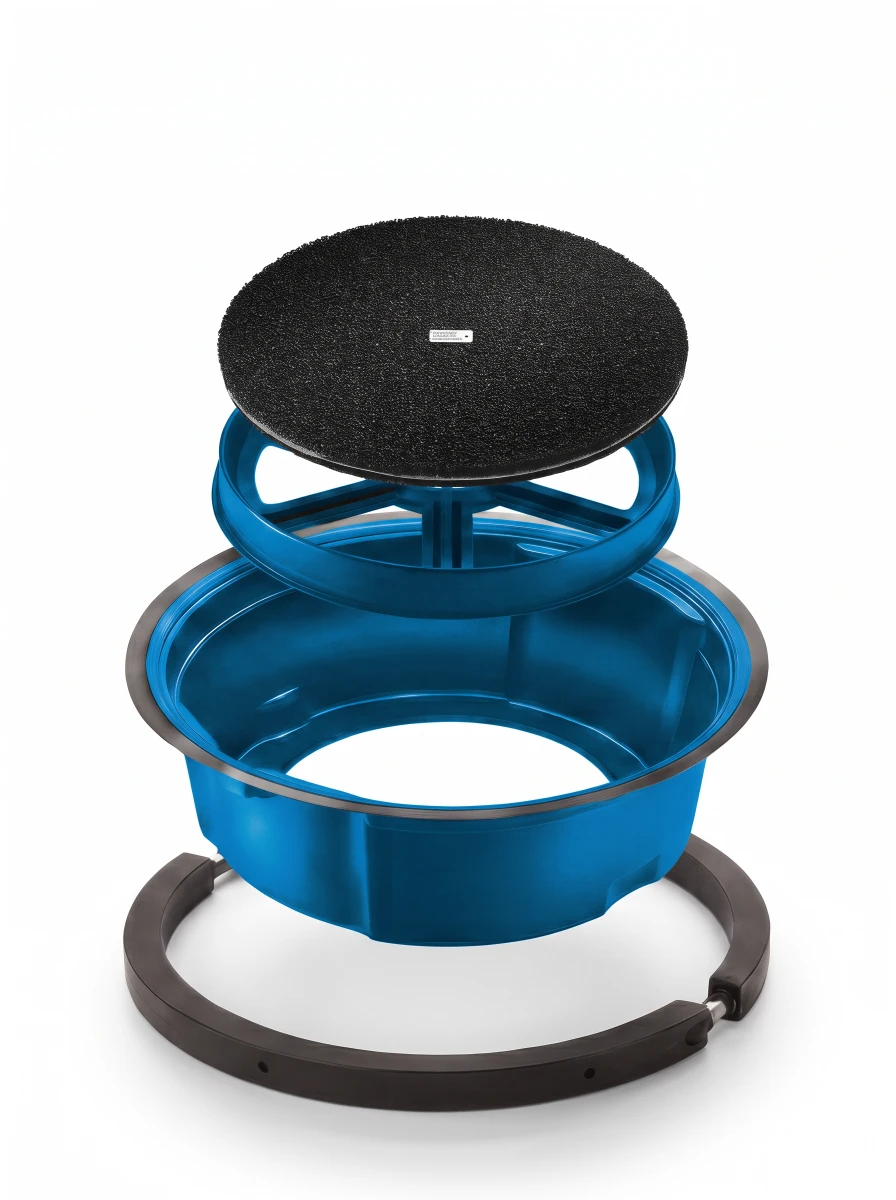

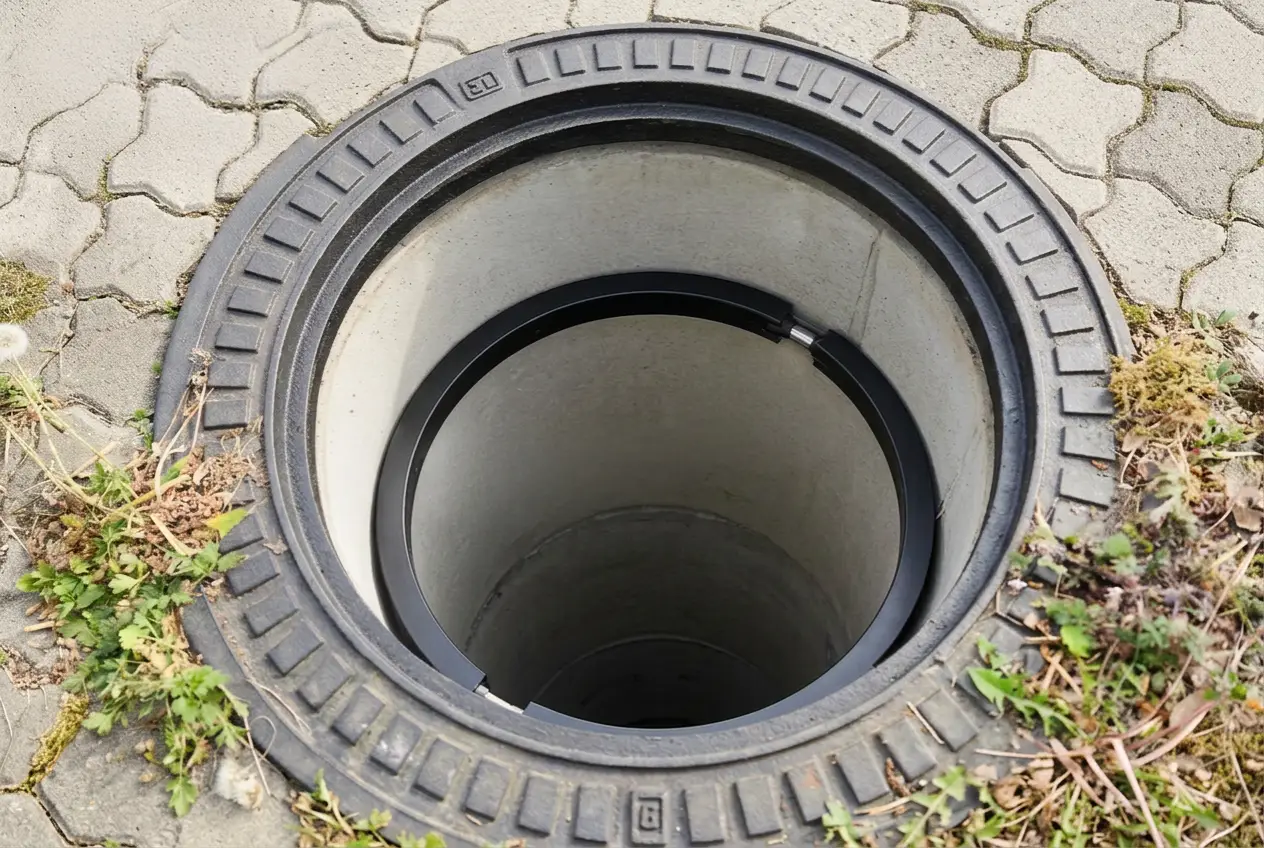

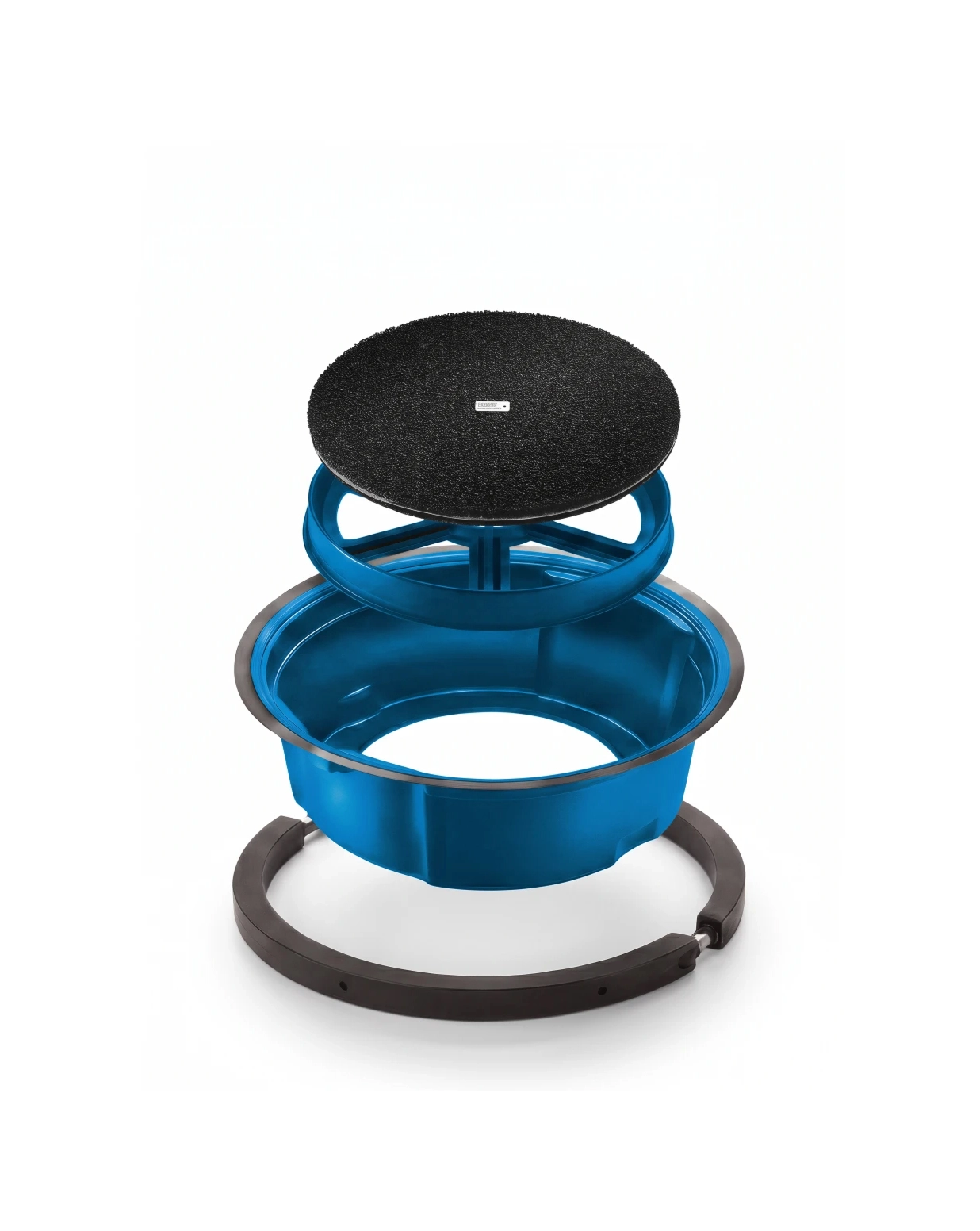

The insert filter with tension ring has been developed for the easy retrofitting of odour filters in existing manholes that lack dirt-trap pockets. The tension ring is positioned within the manhole and, thanks to its special design, is securely braced in place. Spikes provide additional grip.

The odour filter is then simply hooked into the tension ring. For inspection, maintenance and cleaning of the grease separator, the filter can be quickly removed and subsequently replaced.

This solution is particularly suitable for plastic and specialist manholes and requires no drilling, dowelling or welding.

benefits

  • Simple retrofitting in existing shafts
  • Secure hold thanks to a special clamping design
  • Suitable for plastic and specialist shafts
  • No complex structural alterations required
  • Filters easily removable for maintenance and cleaning
  • Robust PE-HD main body with stainless steel brackets

Product variants

Product image

Product name

Product number

Dimensions/diameter

Height

installation depth

For shaft frames

Product weight

How it works

Hakenlänge

Number of filter mats

Filter medium

VPE

Einsatzfilter mit Spannring 600

UT30310

600 mm

inkl. einer weißen Matte

Einsatzfilter mit Spannring 640

UT30281

640 mm

inkl. einer weißen Matte

Einsatzfilter mit Spannring 640

UT30383

640 mm

inkl. einer blauen Matte

UV-resistant

antistatic

resistant to acids and bases

temperature-resistant

Food-safe

Downloads

Are you looking for detailed documentation about our products? Here you can easily download brochures and technical information.

Go to downloads
